4 way Optical Node TON6800Q

TON6800Q optical node can be used in CATV network, digital network and telecommunication network. The optical workstation is mainly designed for the transformation of CATV ...

Current position:HOME > HFC

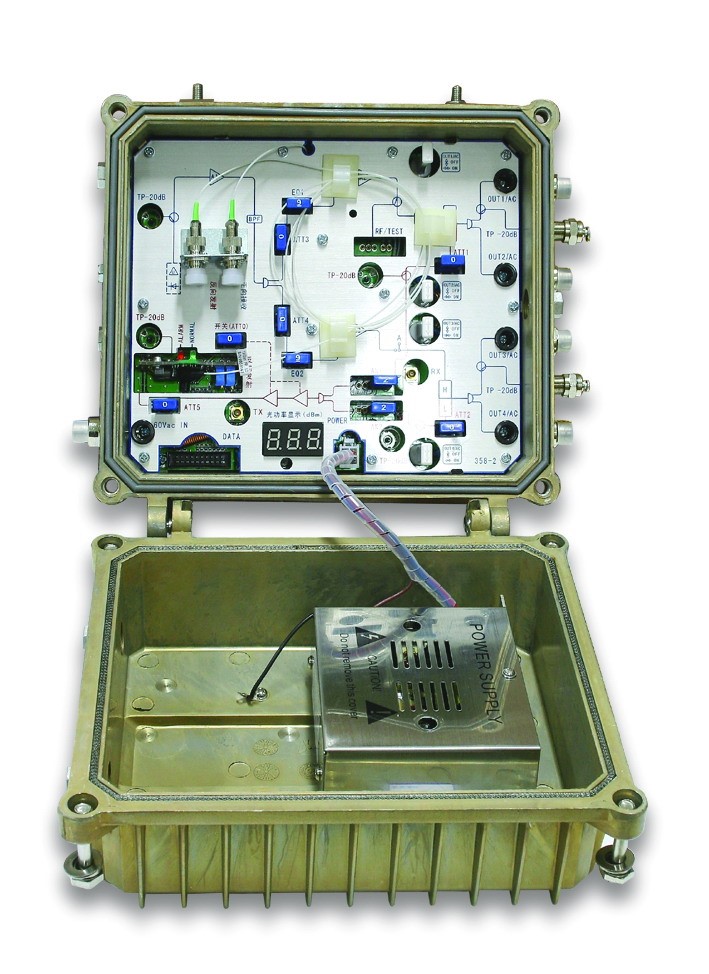

4 way Optical Node TON6800Q

Overview        TON6800Q optical node can be used in CATV network, digital network and telecommunication network. The optical workstation is mainly designed for the transformation of CATV network. The RF input and output amplifier stages of the optical workstation are all made of high quality GaAs or silicon bipolar power amplifier module with high reliability, low power consumption, low noise, high output level and excellent performance / price ratio.

       The receiving power range of TON6800Q is 1dBm - 6dBm, and the output is up to 108dBuV; when 6dBm receiving power, the C/N is up to 46dB. 220V or 60V, the power supply mode is optional, and the high performance conversion circuit is turned into +24V and +5V DC power supply to the internal device of the optical node. Features         Structure design, flexible combination, widely used: independent reverse optical transmitter module, network management module, power module;
        The perfect surge suppression circuit improves the ability of resisting lightning strike and preventing surge impact;
        The input stage adopts imported low-noise GaAs amplifier, and the output stage adopts imported CATV high performance and high reliability module, which greatly improves the C/N and nonlinear distortion characteristics, and greatly reduces the power consumption of the whole machine;
        Strict reliability test, MTBF is more than 100 thousand hours;
        Optical AGC receive optical power -6dBm to +1dBm, output level change range + 1dB;
        RF output port level fixed adjustable, slope adjustable, output port 1-4;
        Each RF return is provided with a three state reverse noise suppressor and an insertion attenuator;
        Receive optical power digital tube display, display the received optical power;
        The RF level detection option can be selected, and the RF output signal level of the optical port port can be monitored in real time through the network management system. Open network management transponder options to meet GB network management standards. Technical Specifications

Class

Item

Unit

Forward

Reverse

Optical

Operating Wavelength

nm

12001600

1310+20

Optical Input Power Range

dBm

-6.0+1.0

Optical Output Power

dBm

≥0dBm

Optical Return Loss

dB

≥40

Receiving optical power digital tube display

dBm

1:1

OP test point:1V/mW

Reverse Laser Type

DFB/IFP optional

Optical Connector Type

FC/APC or SC/APC

RF

Frequency Range

MHz

8754)~862(1000)

56542

Each RF Output Level (-61dBm optical receving)

dBuV

≥108


Flatness

dB

±1.5

RF Output Port

14 ports optional

RF Level Test Point

dB

20±1.0

Nominal RF Input/Output Impedance

?

75

RF Input/Output Return Loss

dB

≥1687550MHz

≥16

Link Index

C/N

dB

≥51.0

CTB

dBc

≥65.0

CSO

dBc

≥61.0

NPR Dynamic Range

dB

15@NPR≥30dB

General

Dimension

mm

235×230×155

Weight

kg

4.5

Voltage

V

AC 220V 50Hz  or   AC 60V 50Hz

Operating Temperature

-25+55

Power Consumption

VA

20


       Optical station forward pre equalization is 3dB, for example: EQ insert is 9 dB, then output equilibrium is 3 + 9=12dB
